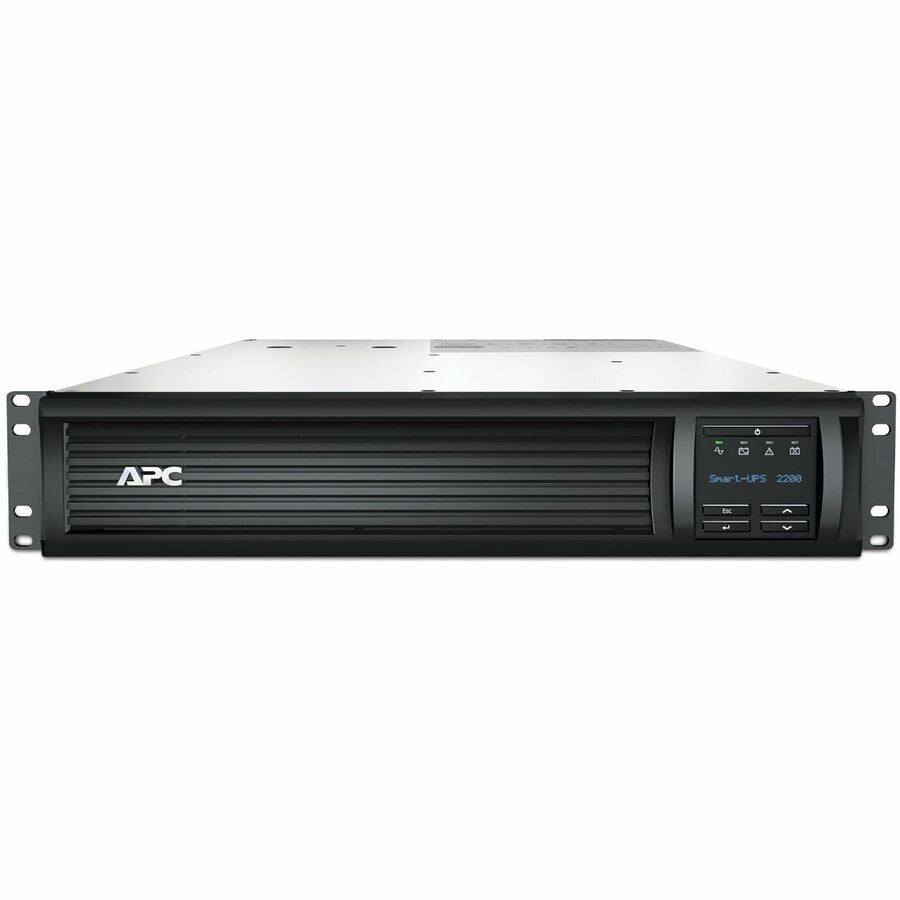

APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6x NEMA 5-15R+2x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD - SMT2200RM2UC
APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6x NEMA 5-15R+2x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD - SMT2200RM2UC

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Schneider Electric SA

APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6x NEMA 5-15R+2x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD - SMT2200RM2UC

384 in stock
SKU: 5080459
$1,727.68
-40% $2,870.00 $1,727.68
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf4
Click here for User Manual
Click here for Video

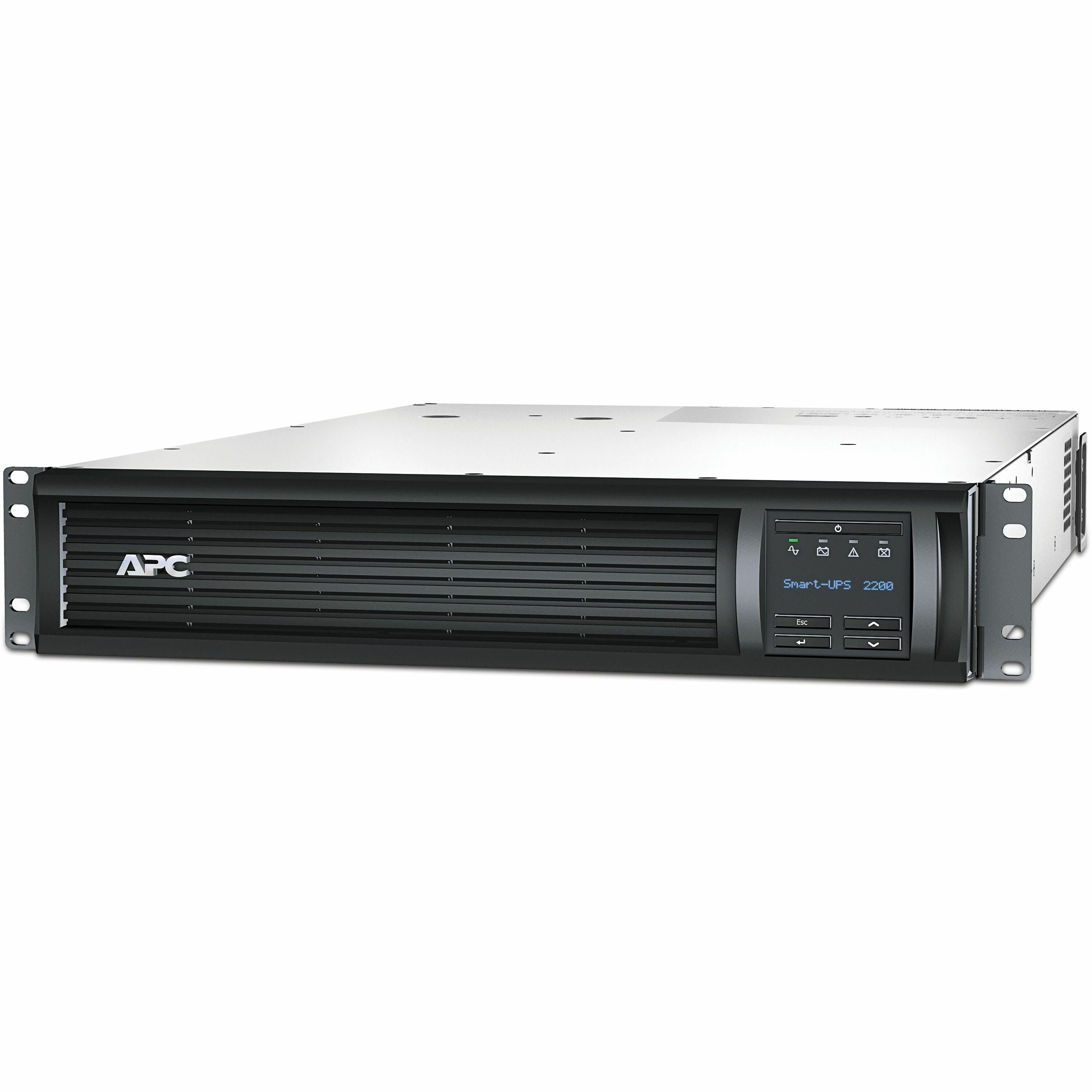

APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6x NEMA 5-15R+2x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD

  • UPC: 731304331056
    • General Information
    • Manufacturer: Schneider Electric SA
    • Manufacturer Part Number: SMT2200RM2UC
    • Manufacturer Website Address: http://www.schneider-electric.com
    • Brand Name: APC by Schneider Electric
    • Product Line: Smart-UPS
    • Product Name: Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect
    • Product Type: Line-interactive UPS
    Technical Information
    • Plug/Connector Type: NEMA 5-20P
    • Receptacle Type: NEMA 5-20P

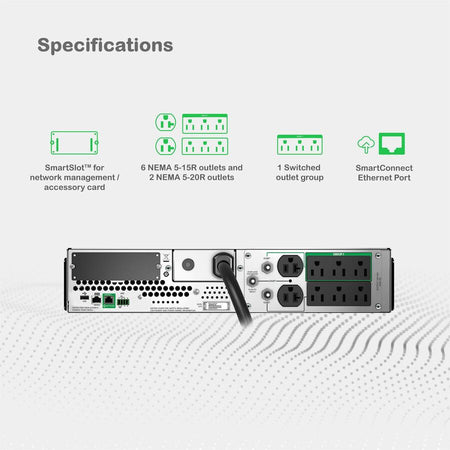

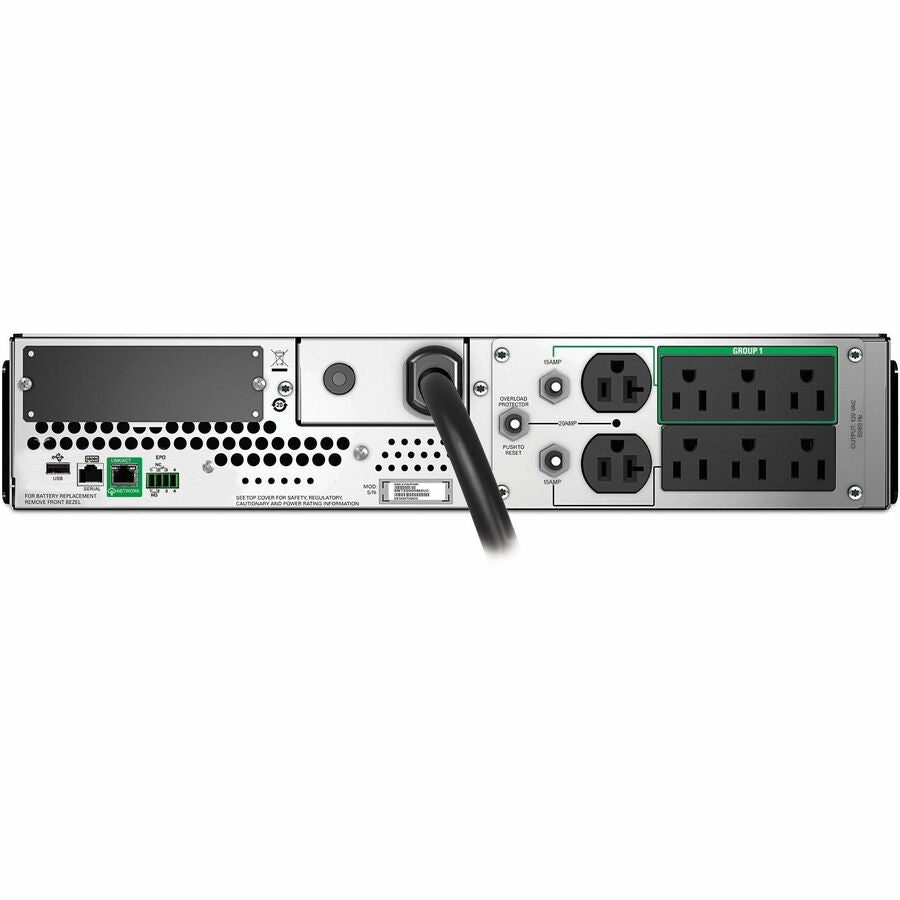

    • Receptacle Detail:
      • 2 x NEMA 5-20R
      • 6 x NEMA 5-15R
    • Number of Battery & Surge Outlets: 8
    • Cord Length: 8 ft
    • Transfer Time: 10 ms
    • Phase: Single Phase
    Power Description
    • Load Capacity (VA): 1920 VA
    • Load Capacity (Watt): 1980 W
    • Input Voltage: 120 V AC
    • Input Voltage Range: 75 V AC - 154 V AC
    • Output Voltage: 120 V AC
    • Waveform Type: Sine Wave
    • Surge Energy Rating: 530 J
    Battery Information
    • Battery Chemistry: Lead Acid

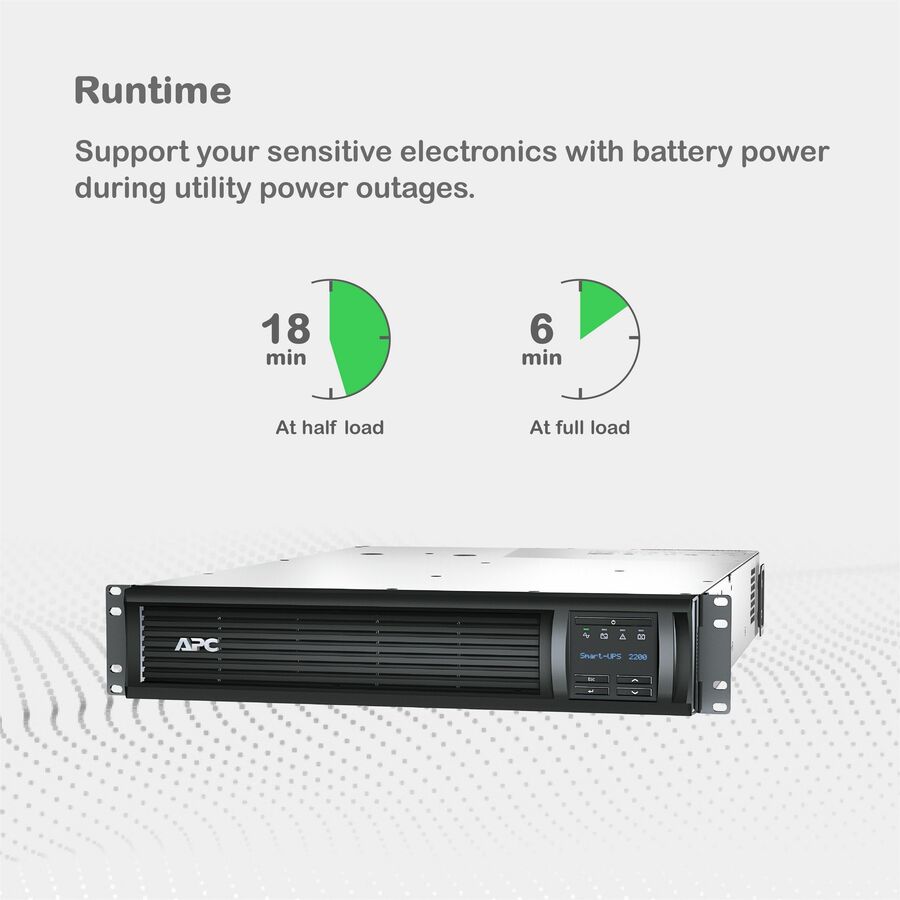

    • Backup/Run Time (Full Load): 6.60 Minute
    • Hot Swappable: Yes
    • Typical Battery Recharge Time: 3 Hour
    Physical Characteristics
    • Product Color: Black
    • Height: 3.4"
    • Width: 17"
    • Depth: 26.9"
    • Rack Height: 2U
    • Form Factor: Rack-mountable
    • Weight (Approximate): 93.28 lb
    Miscellaneous
    • Package Contents:
    • Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect
    • Rack mounting brackets
    • Rack mounting support rails
    • Smart UPS signalling RS-232 cable
    • USB cable
    • Software Included: Powerchute Serial Edition
    • Energy Star: Yes
    • Country of Origin: Vietnam
    • Environmentally Friendly: Yes
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 3 Year
    • Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
