Home » APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit - SRT2200RMXLA

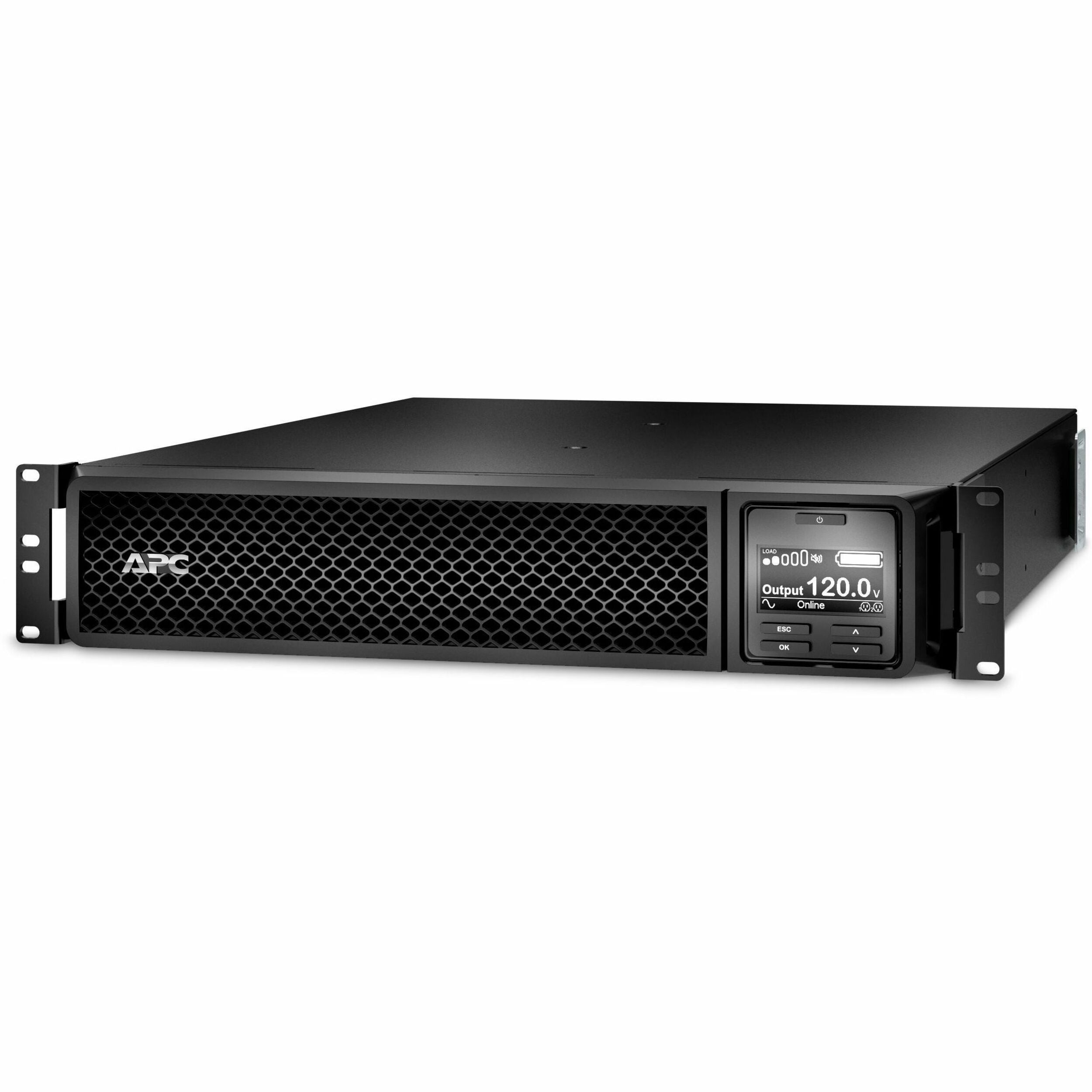

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit - SRT2200RMXLA
APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit - SRT2200RMXLA

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Schneider Electric SA

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit - SRT2200RMXLA

175 in stock
SKU: 4657979
$2,349.32
-33% $3,525.00 $2,349.32
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Additional pdf4
Click here for Additional pdf5
Click here for Additional pdf6
Click here for User Manual

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit

  • UPC: 731304323051
    • General Information
    • Manufacturer: Schneider Electric SA
    • Manufacturer Part Number: SRT2200RMXLA
    • Manufacturer Website Address: http://www.schneider-electric.com
    • Brand Name: APC by Schneider Electric
    • Product Line: Smart-UPS
    • Product Name: Smart-UPS SRT 2200VA RM 120V
    • Product Type: Double Conversion Online UPS
    Technical Information
    • Plug/Connector Type: NEMA 5-20P
    • Receptacle Type: NEMA 5-20P
    • Receptacle Detail:
      • 1 x NEMA L5-20R
      • 6 x NEMA 5-20R
    • Number of Battery & Surge Outlets: 7
    • Cord Length: 5.91 ft
    • Phase: Single Phase
    • Application/Usage:
      • Server
      • Network Workstation
    Power Description
    • Load Capacity (VA): 2200 VA
    • Load Capacity (Watt): 1800 W
    • Input Voltage: 120 V AC
    • Output Voltage: 120 V AC
    • Input Frequency: 70 Hz
    • Waveform Type: Sine Wave
    • Surge Energy Rating: 340 J
    Management
    • Network Management: SmartSlot
    Controls/Indicators

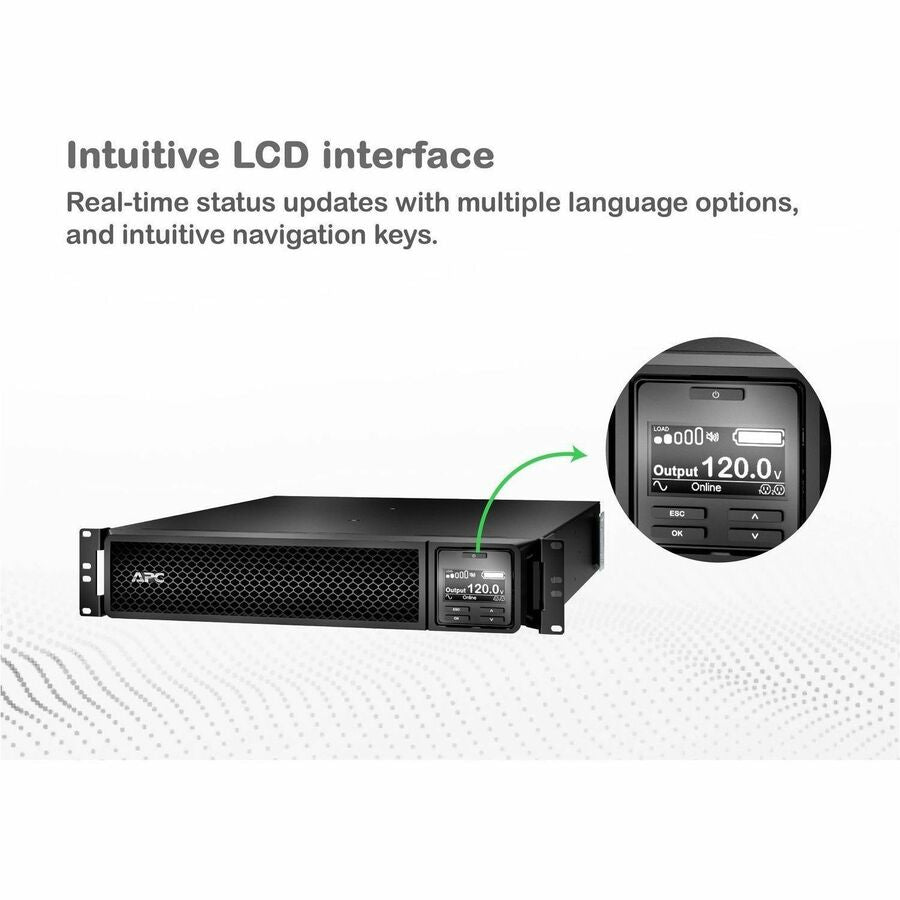

    • Status Indicators: LCD Display
    Interfaces/Ports
    • EPO Port: Yes
    Battery Information
    • DC System Voltage: 72 V DC
    • Number of Batteries: 1
    • Battery Chemistry: Lead Acid
    • Battery Energy: 1101.6 kJ
    • Battery Life: 5 Year
    • Hot Swappable: Yes
    • Typical Battery Recharge Time: 3 Hour
    • Replaceable Battery: Yes
    Environmental Conditions
    • Maximum Operating Elevation: 10000 ft
    • Maximum Storage Elevation: 50000 ft
    • Storage Temperature: -4°F (-20°C) - 122°F (50°C)
    • Storage Relative Humidity: 0% - 95%
    • Maximum Operating Temperature: 104°F (40°C)
    • Sound Emission (A-Weighted): 55 dB(A)
    • Thermal Dissipation: 156.79 W
    Physical Characteristics
    • Product Color: Black
    • Height: 3.3"
    • Width: 17"
    • Depth: 23"
    • Rack Height: 2U
    • Form Factor: Rack-mountable
    • Weight (Approximate): 55.01 lb
    Miscellaneous
    • Package Contents:
    • Smart-UPS SRT 2200VA RM 120V
    • CD with software
    • Documentation CD
    • Installation guide
    • Rack mounting brackets
    • Rack mounting hardware
    • Rack mounting support rails
    • USB cable
    • Warranty card
    • Software Included: Powerchute Serial Edition
    • Energy Star: Yes
    • Country of Origin: Philippines
    • Environmentally Friendly: Yes
    • Energy Efficiency Certification: ENERGY STAR 2.0
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    • Limited Warranty: 3 Year
    • Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s)
