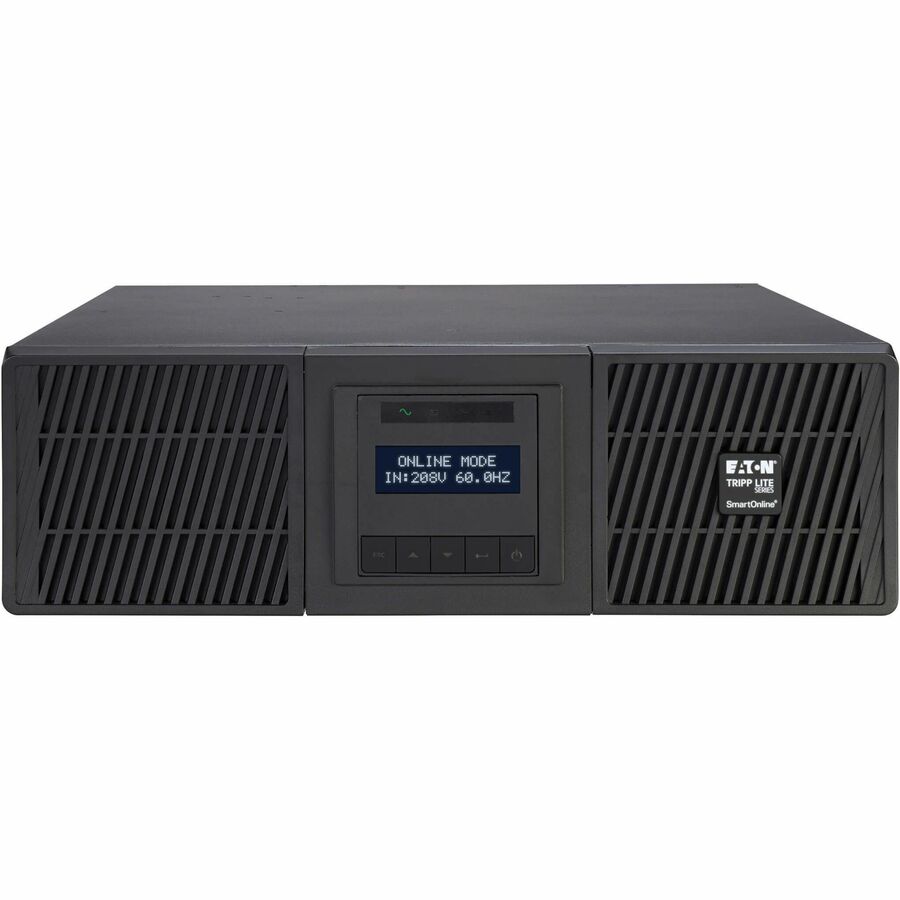

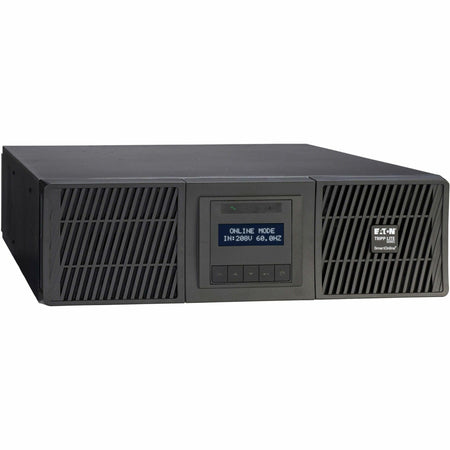

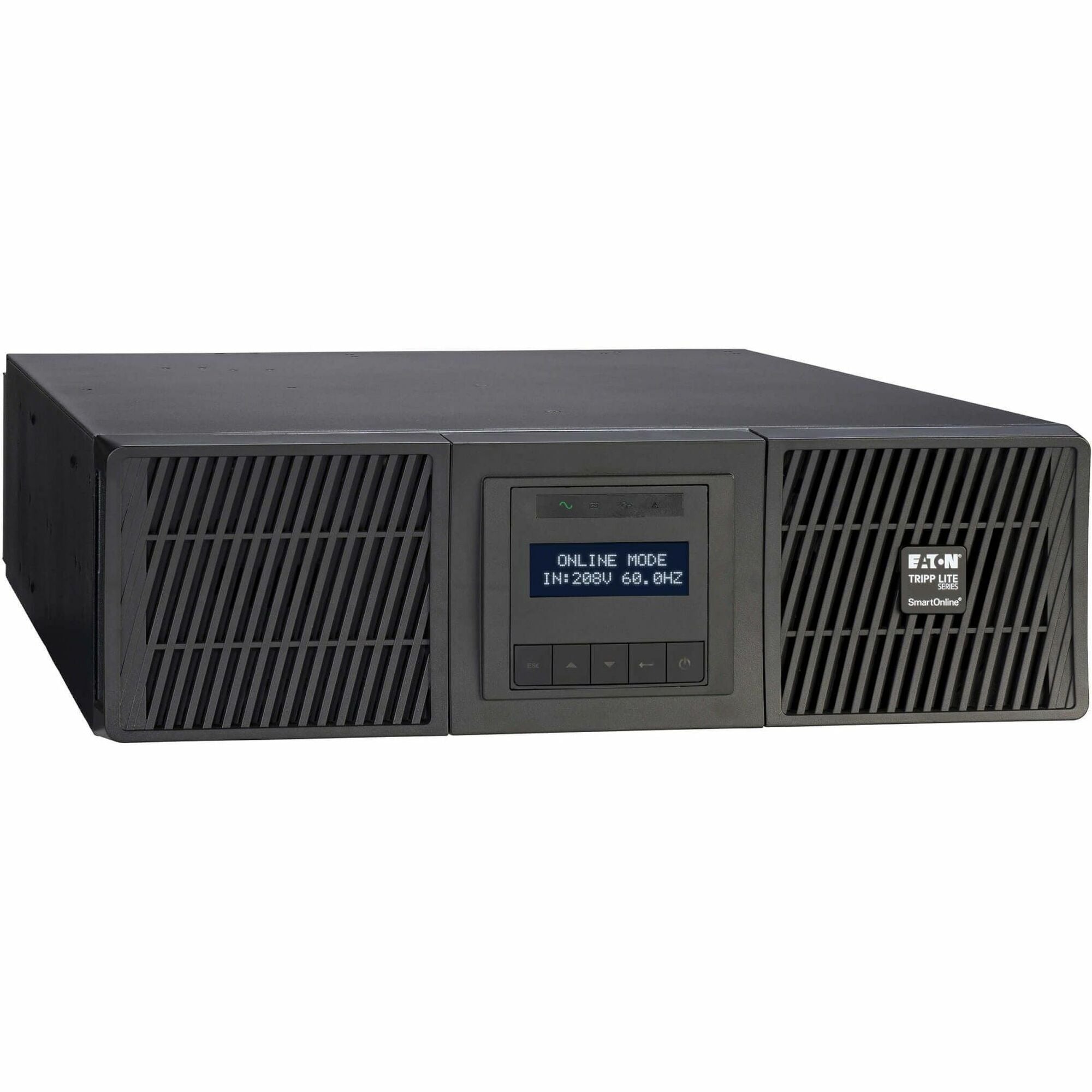

Eaton Tripp Lite Series SmartOnline 5000VA 4500W 208V Online Double-Conversion UPS with Maintenance Bypass - L6-20R/L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 3U Rack/Tower - SU5000RTMB
Regular price
$4,802.00
Regular price
-36%
$7,516.00
Sale price
$4,802.00
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Pickup currently unavailable at Chantilly, VA
Click here for Manufacturer Brochure
Click here for User Manual
UPC: 037332286338
General Information
Click here for User Manual
Eaton Tripp Lite Series SmartOnline 5000VA 4500W 208V Online Double-Conversion UPS with Maintenance Bypass - L6-20R/L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 3U Rack/Tower
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SU5000RTMB
- Manufacturer Website Address: http://www.eaton.com
- Brand Name: Tripp Lite by Eaton
- Product Line: SmartOnline
- Product Model: SU5000RTMB
- Product Name: SmartOnline SU5000RTMB 5000VA Rack/tower UPS
- Product Type: Double Conversion Online UPS
- AVR: Yes
- Plug/Connector Type:
- NEMA L6-30P
- Hardwired
- Receptacle Type:
- NEMA L6-20R
- NEMA L6-30R
- Hardwired

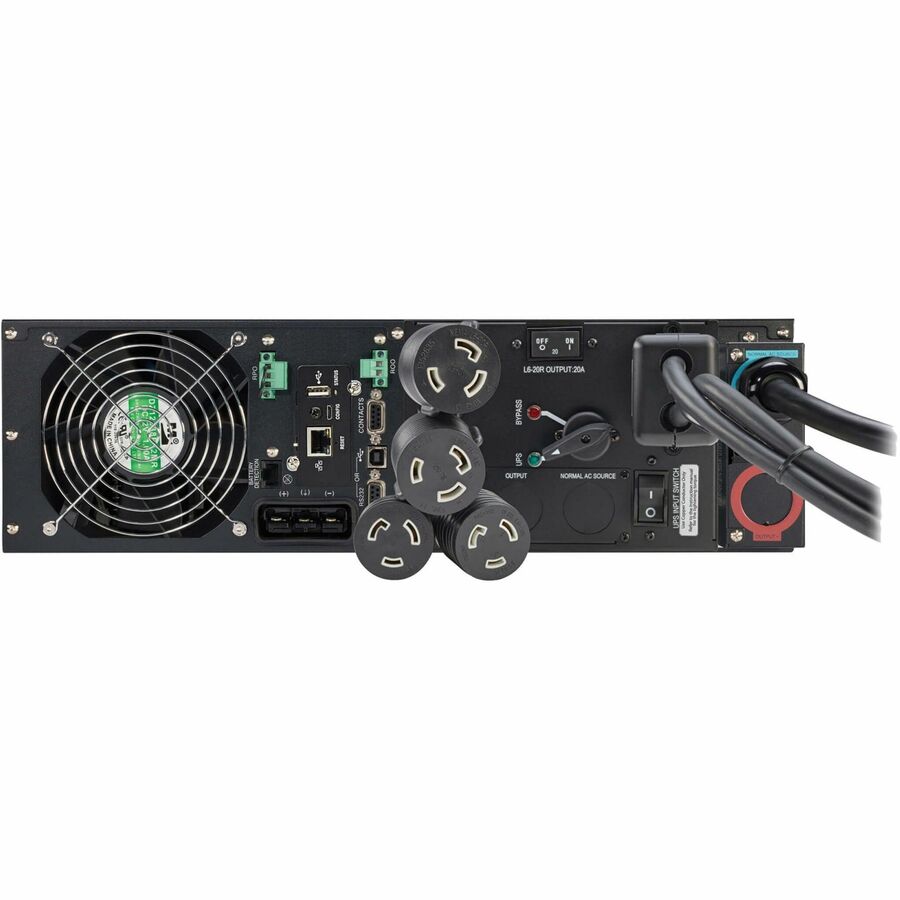

- Receptacle Detail:
- 2 x NEMA L6-20R
- 2 x NEMA L6-30R
- Cord Length: 10 ft
- Transfer Time: 0 ns
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Efficiency Detail: 98% (ECO Mode)
- Application/Usage:
- Mission Critical Equipment
- IT Equipment
- Network Device
- Education
- Commercial
- Financial
- Healthcare
- Surge Suppression: Yes
- Features:
- Audible Alarm
- Cold Start Function
- Green Energy Saving
- Built-in Bypass Switch
- Load Capacity (VA): 5000 VA
- Load Capacity (Watt): 4500 W
- Input Voltage: 230 V AC
- Input Current: 23.30 A
- Output Voltage:
- 230 V AC
- 240 V AC
- 220 V AC
- 208 V AC
- 200 V AC
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Pure Sine Wave
- Circuit Breaker: Yes
- Output Power Factor: 0.9
- Display: LCD
- Network Management:
- Network Card
- DB-9 RS-232
- Dry Contact
- USB
- SNMP
- Alarm:
- Utility Power Failure
- Low Battery
- Overload
- Battery Fault
- Remote Shutdown
- Status Indicators:
LED Indicators:
4 status-indicating LEDs
- Serial Port: Yes
- USB: Yes
- DC System Voltage: 180 V DC
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 11 Minute
- Hot Swappable: Yes
- Replaceable Battery: Yes
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Thermal Dissipation: 457.19 W
- Height: 5.1"
- Width: 17.3"
- Depth: 34"

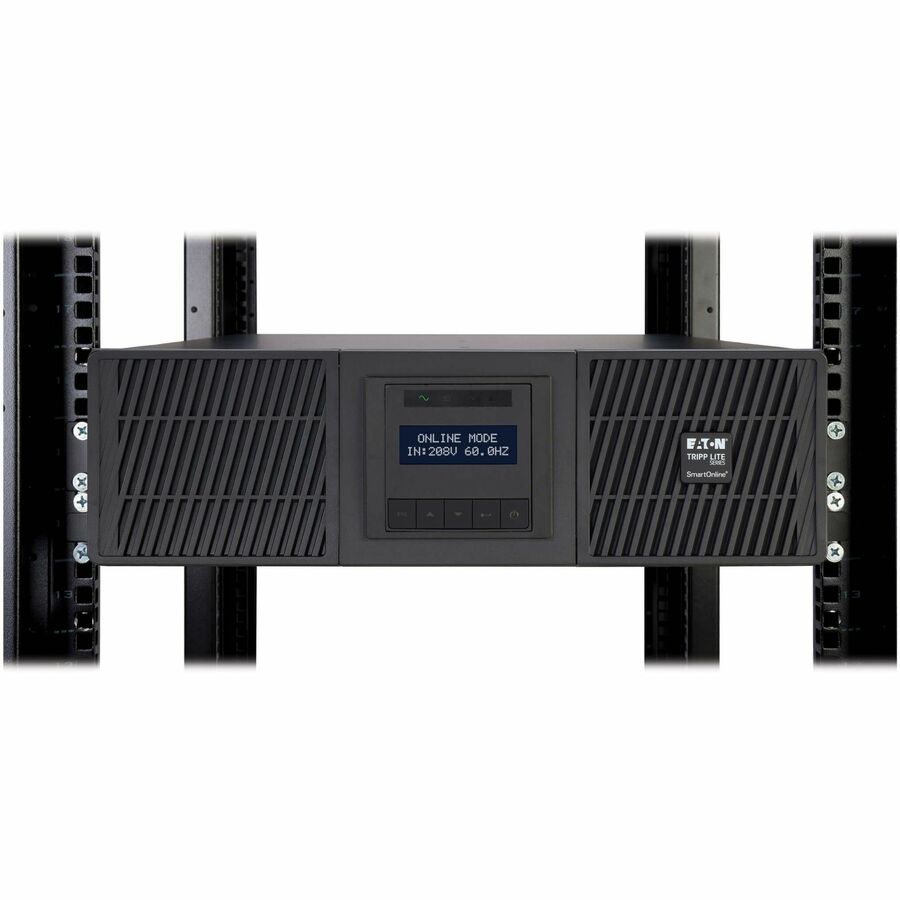

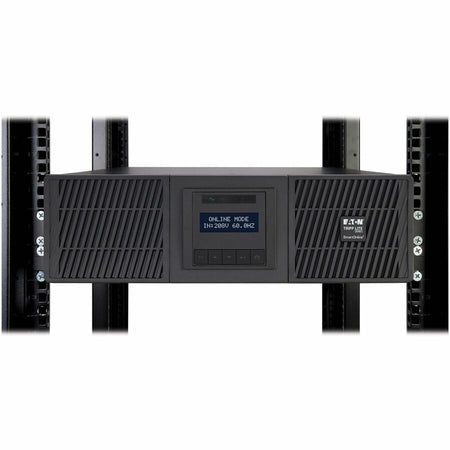

- Rack Height: 3U

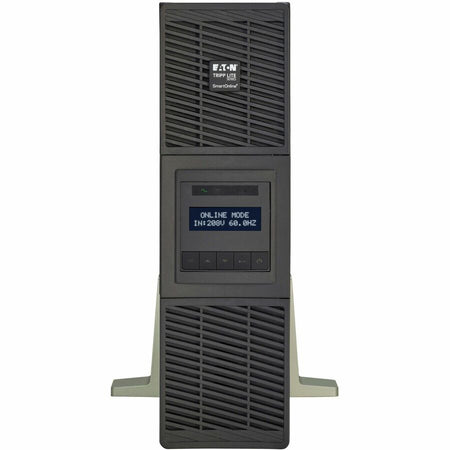

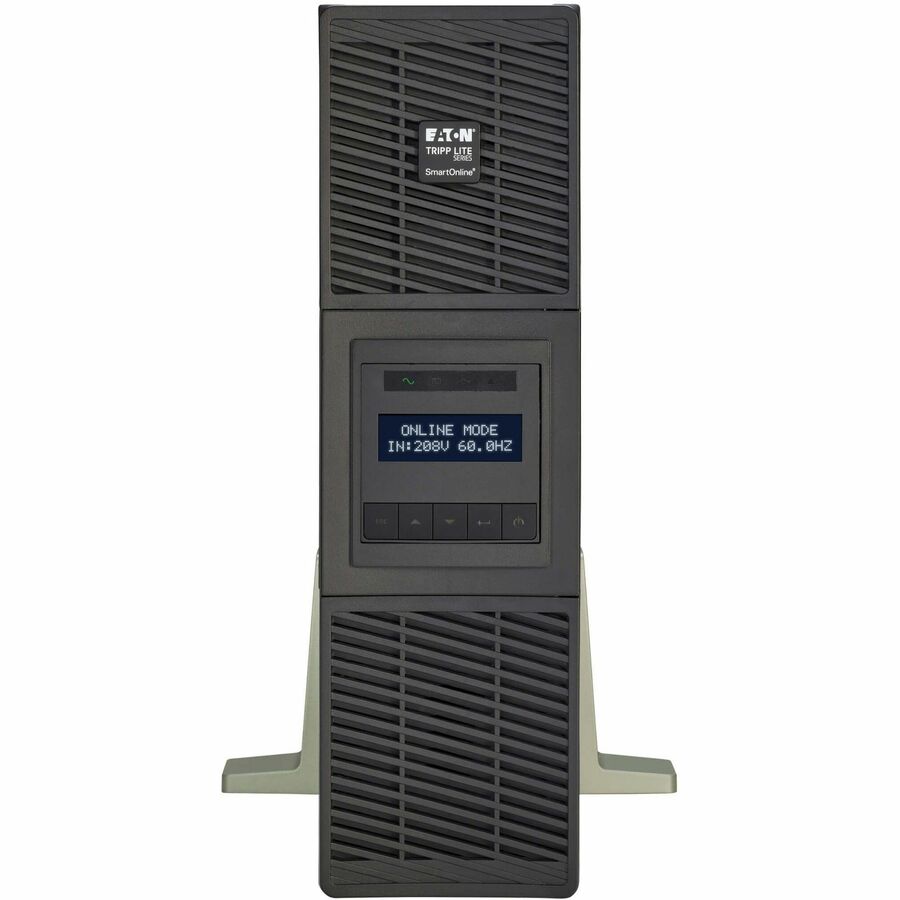

- Form Factor: Rack/Tower
- Weight (Approximate): 111.50 lb

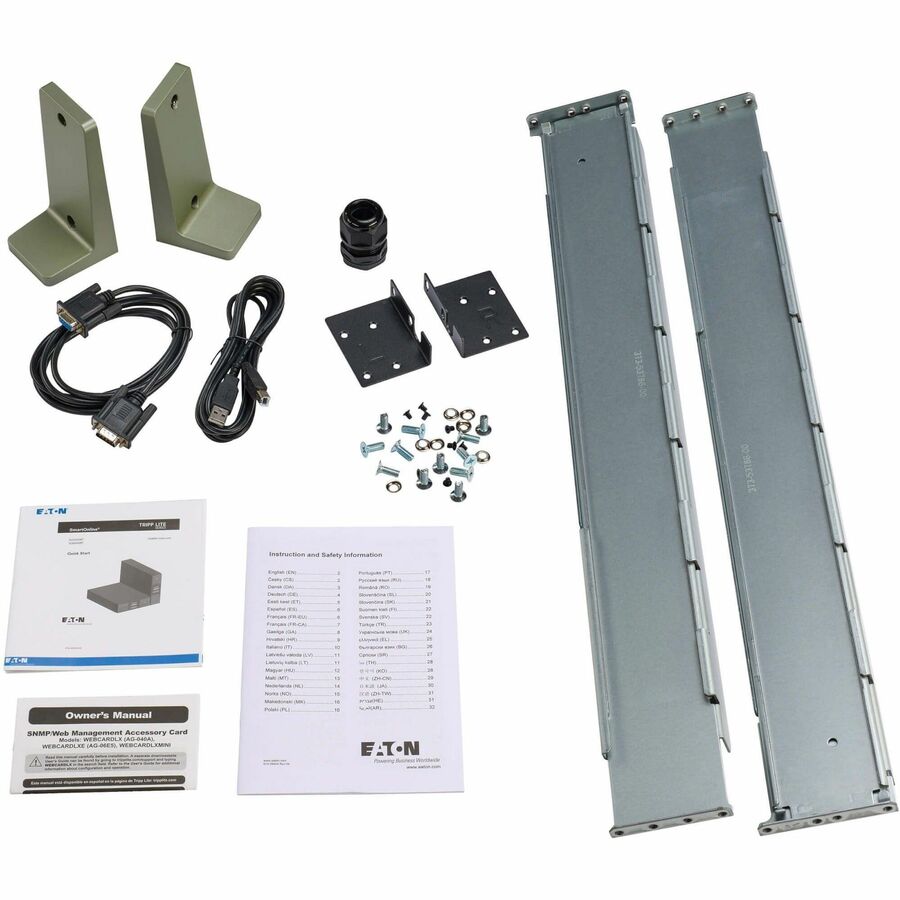

- Package Contents:
- SmartOnline SU5000RTMB 5000VA Rack/tower UPS
- SUPDMBP6K Maintenance Bypass
- WEBCARDLXE Network Card
- USB Cable
- RS-232 Cable
- Tower Support Stands
- Cable Gland for Hardwire Connection
- Rack-mounting Hardware
- Maintenance Bypass Mounting Hardware
- DB9 Serial Cables
- Quick Start Guide
- Energy Star: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Limited Warranty: 2 Year
- Additional Warranty Information:
- 250,000 Ultimate Lifetime Insurance
