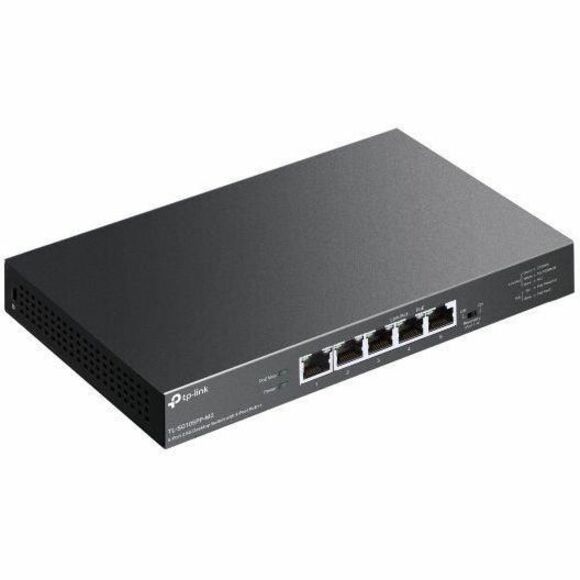

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ - TL-SG105PP-M2
TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ - TL-SG105PP-M2

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

TP-LINK Technologies Co., Ltd

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ - TL-SG105PP-M2

11 in stock
SKU: 14222469
$254.83
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1
Click here for Additional pdf2
Click here for Additional pdf3
Click here for Additional pdf4

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++

  • UPC: 840030705717
    • General Information
    • Manufacturer: TP-LINK Technologies Co., Ltd
    • Manufacturer Part Number: TLSG105PPM2
    • Manufacturer Website Address: http://www.tp-link.com/us
    • Brand Name: TP-Link
    • Product Model: TL-SG105PP-M2
    • Product Name: 5-Port 2.5G Desktop Switch with 4-Port PoE++
    • Product Type: Ethernet Switch
    Technical Information
    • Features: Fanless
    Interfaces/Ports
    • Total Number of Network Ports: 5.0
    • Network (RJ-45): Yes
    • Port/Expansion Slot Details: 5 x 2.5 Gigabit Ethernet PoE++
    Media & Performance
    • Media Type Supported: Twisted Pair
    • Ethernet Technology: 2.5 Gigabit Ethernet
    • Network Technology: 2.5GBase-T
    Network & Communication
    • Layer Supported: 2
    • Networking Standards:
      • IEEE802.3af
      • IEEE 802.3at
      • IEEE 802.3bt
      • IEEE 802.3x
      • IEEE 802.1p
      • IEEE 802.3ab
      • IEEE 802.3
    Management & Protocols
    • Manageable: No
    Power Description
    • PoE (RJ-45) Port: Yes
    • PoE Budget: 123 W
    • Input Voltage: 53.5 V DC
    • Power Source: Power Adapter
    • Power Consumption: 143.37 W
    Physical Characteristics
    • Product Color: Black
    • Product Material: Steel
    • Form Factor:
      • Wall Mountable
      • Desktop
    • Height: 1"
    • Width: 8.2"
    • Depth: 5"
    Miscellaneous
    • Package Contents:
      • 5-Port 2.5G Desktop Switch with 4-Port PoE++
      • Power Adapter
      • Installation Guide
      • Rubber Feet
    • Environmentally Friendly: Yes
    • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
