Home » Panduit SmartZone U03N11L 3000VA Rack/Tower/Compact UPS - U03N11L
Panduit SmartZone U03N11L 3000VA Rack/Tower/Compact UPS - U03N11L
Panduit SmartZone U03N11L 3000VA Rack/Tower/Compact UPS - U03N11L

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

PANDUIT CORP

Panduit SmartZone U03N11L 3000VA Rack/Tower/Compact UPS - U03N11L

Chat for Availability
SKU: 12727698
$3,154.90
-7% $3,391.60 $3,154.90
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Click here for Additional pdf1
Click here for Manufacturer Brochure

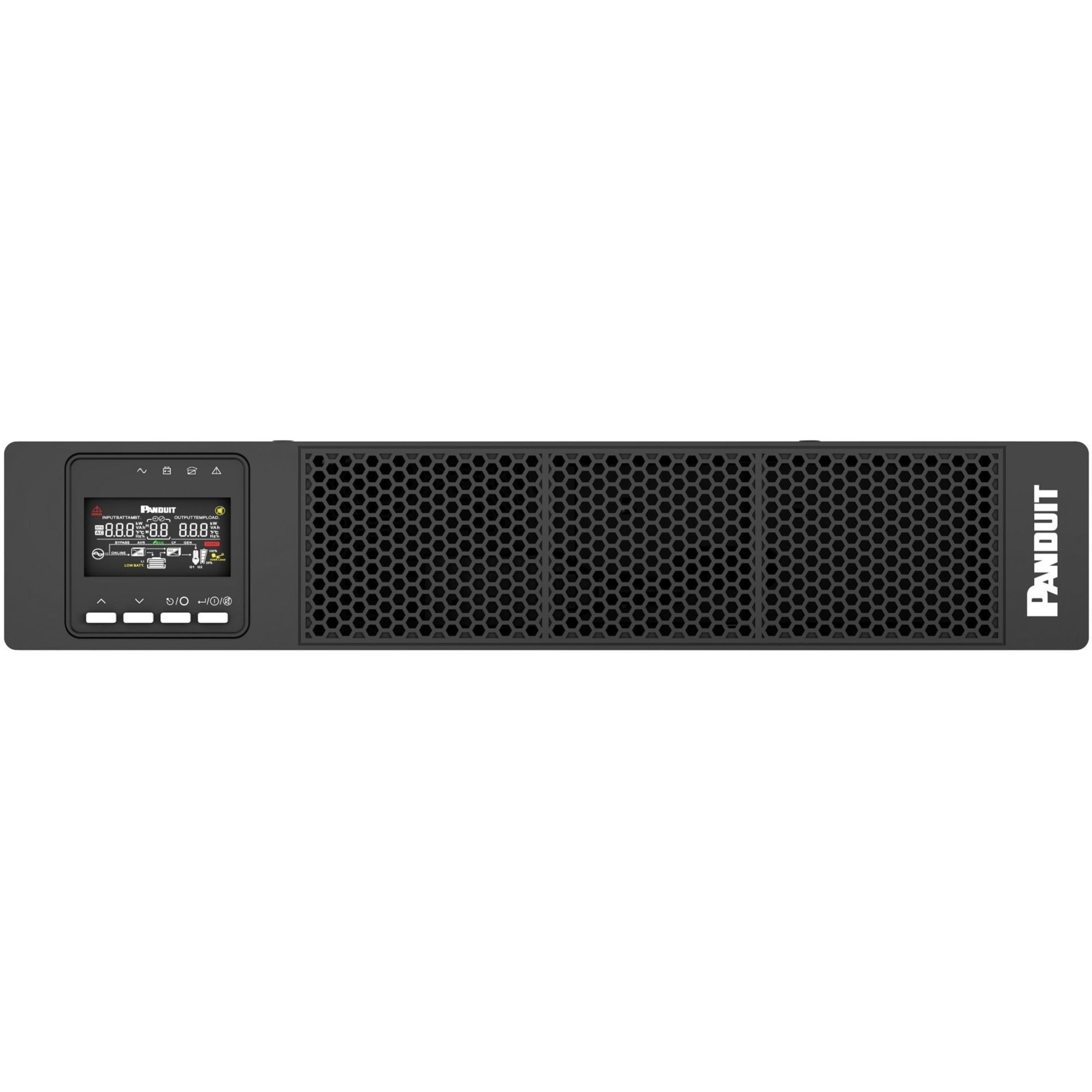

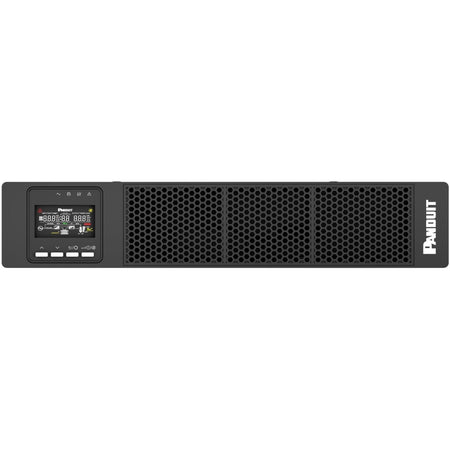

Panduit SmartZone U03N11L 3000VA Rack/Tower/Compact UPS

  • UPC : N/A
    • General Information
    • Manufacturer: PANDUIT CORP
    • Manufacturer Part Number: U03N11L
    • Manufacturer Website Address: http://www.panduit.com
    • Brand Name: Panduit
    • Product Line: SmartZone
    • Product Model: U03N11L
    • Product Name: SmartZone U03N11L 3000VA Rack/Tower/Compact UPS
    • Product Type: Line-interactive UPS
    Technical Information
    • AVR: Yes
    • Plug/Connector Type: NEMA L5-30P
    • Receptacle Type:
      • NEMA L5-30R
      • NEMA 5-20R
    • Receptacle Detail:
      • 1 x NEMA L5-30R
      • 2 x NEMA 5-20R
    • Dataline Protection: RJ-45
    • Overload Protection: Yes
    • Transfer Time: 6 ms
    • Phase: Single Phase
    • Application/Usage:
      • Data Center
      • IT Equipment
      • Enterprise
      • Computer
      • Edge Computing
    Power Description
    • Load Capacity (VA): 3000 VA
    • Load Capacity (Watt): 2700 W
    • Input Voltage: 120 V AC
    • Input Voltage Range: 75 V AC - 146 V AC
    • Output Voltage:
      • 100 V AC
      • 110 V AC
      • 115 V AC
      • 120 V AC
      • 125 V AC
    • Input Frequency: 60 Hz
    • Output Frequency: 60 Hz
    • Waveform Type: Pure Sine Wave
    Management
    • Alarm: Yes
    Controls/Indicators
    • Status Indicators: Colorful LCD with four buttons and LED indicators
    Interfaces/Ports
    • Serial Port: Yes
    • Network (RJ-45): Yes
    • EPO Port: Yes
    • USB (HID Compliant) Port: Yes
    Battery Information
    • DC System Voltage: 76.8 V DC
    • Battery Chemistry: Lithium-Ion (LiFePO4)
    • Backup/Run Time With External Battery Cabinet (Full Load): 9 Minute
    • Backup/Run Time With External Battery Cabinet (Half Load): 22 Minute
    • Battery Life: 10 Year
    • Hot Swappable: Yes
    • Typical Battery Recharge Time: 4 Hour
    • Replaceable Battery: Yes
    Environmental Conditions
    • Maximum Operating Elevation: 9842.52 ft
    • Storage Temperature: -13°F (-25°C) - 131°F (55°C)
    • Maximum Operating Temperature: 104°F (40°C)
    • Sound Emission: 55 dB
    • Thermal Dissipation: 97.89 W
    Physical Characteristics
    • Product Color: Black
    • Height: 3.4"
    • Width: 17.3"
    • Depth: 25.2"
    • Rack Height: 2U
    • Form Factor:
      • Rack/Tower/Compact
      • Rail Mountable
    • Weight (Approximate): 68.34 lb
    Miscellaneous
    • Package Contents:
      • SmartZone U03N11L 3000VA Rack/Tower/Compact UPS
      • Intelligent Network Management Card
    • Software Included: SmartZone Cloud Ready
    • Energy Star: Yes
    • Environmentally Friendly: Yes
    Warranty
    • Limited Warranty: 5 Year
    • Additional Warranty Information: 5 Years (UPS & Battery)
