Home » ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A) - VE814A-ATA

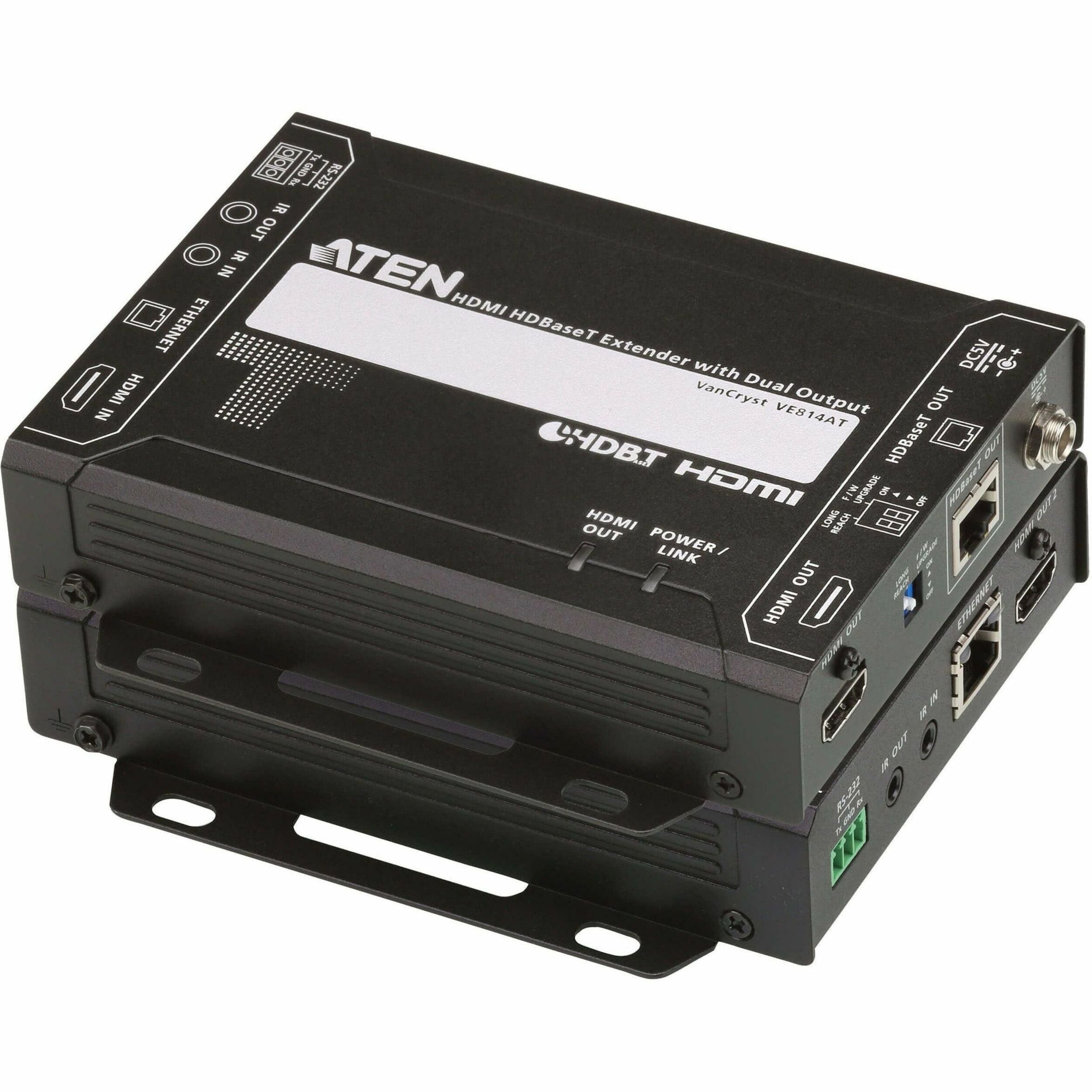

ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A) - VE814A-ATA
ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A) - VE814A-ATA

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

ATEN Technology, Inc

ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A) - VE814A-ATA

1 in stock
SKU: 7130943
$528.13
-21% $666.00 $528.13
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Manufacturer Brochure
Click here for User Manual

ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)

  • UPC: 672792014147
    • General Information
    • Manufacturer: ATEN Technology, Inc
    • Manufacturer Part Number: VE814A-ATA
    • Manufacturer Website Address: http://www.aten.com/us/en/
    • Brand Name: ATEN
    • Product Line: VanCryst
    • Product Model: VE814A
    • Product Name: HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)
    • Product Type: Video Extender Transmitter/Receiver
    Technical Information
    • Connectivity Technology: Wired
    • Number of Input Devices Supported: 1
    • Number of Output Devices Supported: 1
    • Maximum Operating Distance: 492.13 ft
    Video
    • Graphics Modes: 4K
    • Maximum Video Resolution: 4096 x 2160

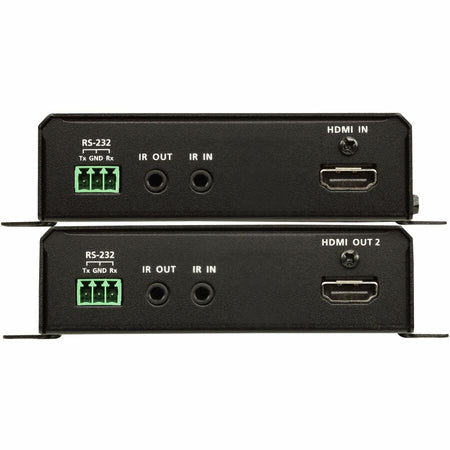

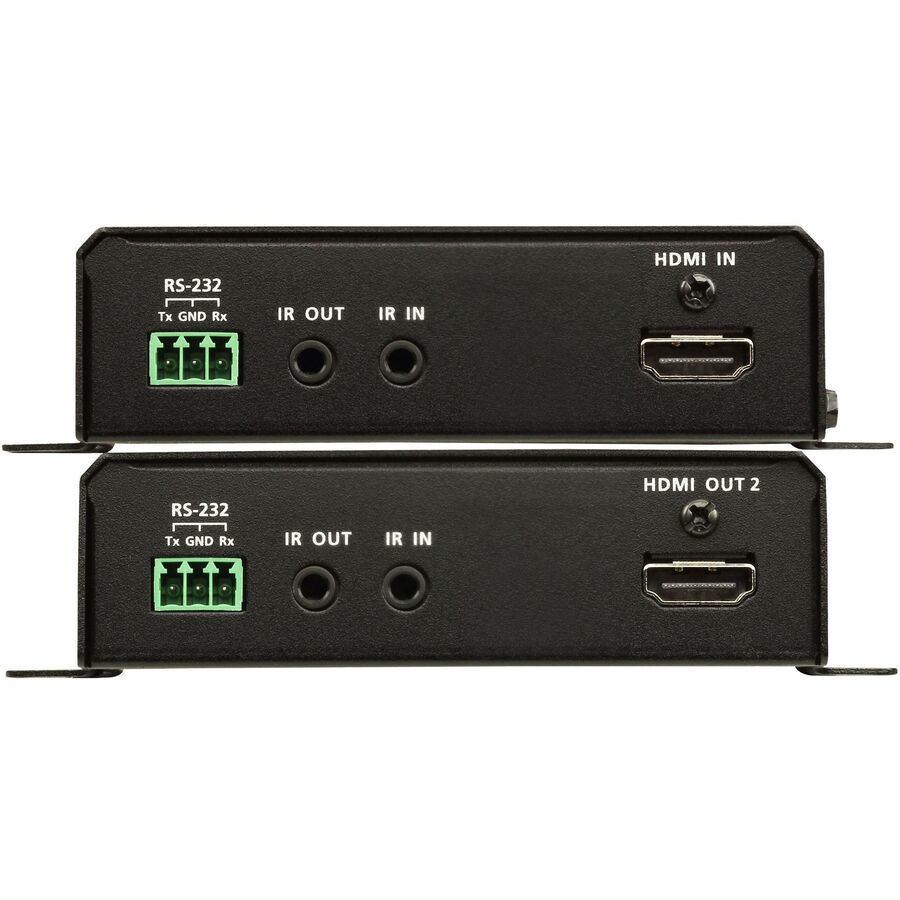

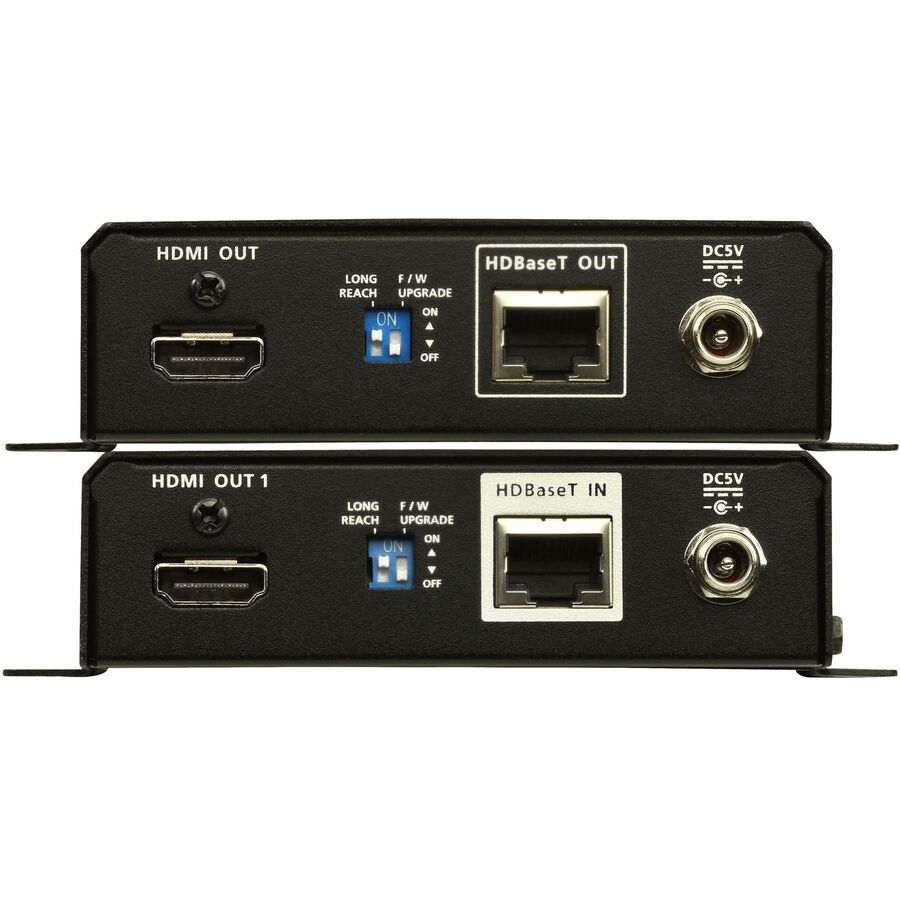

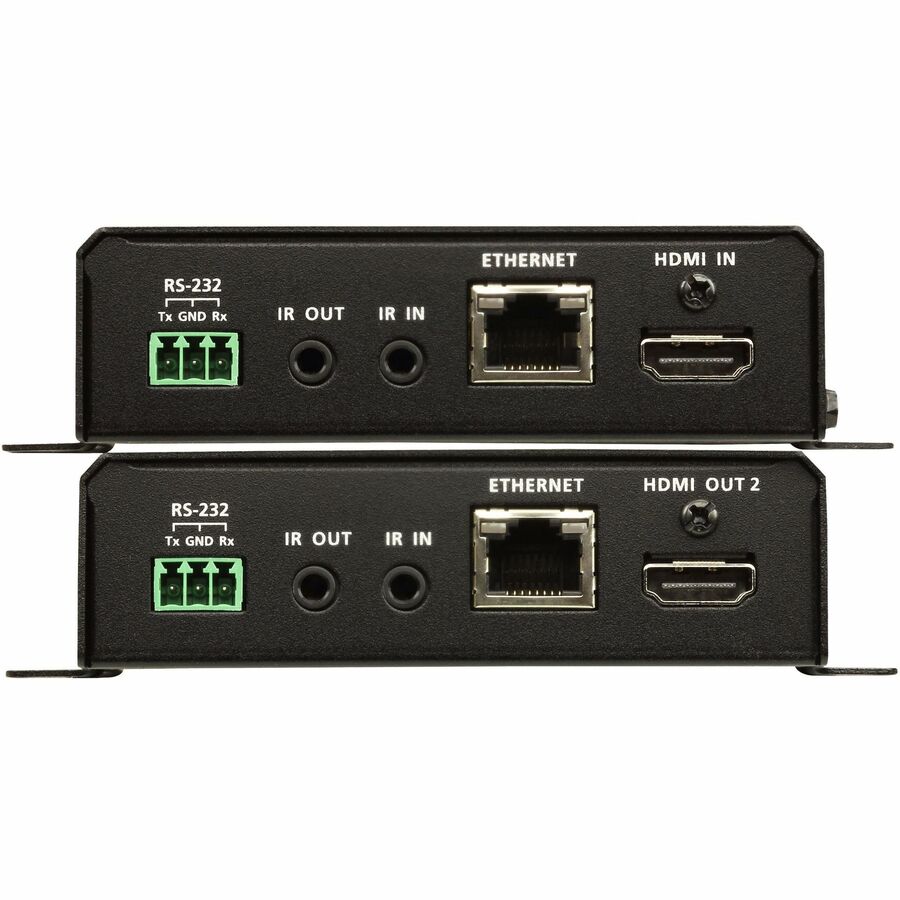

    Interfaces/Ports
    • Network (RJ-45): Yes
    • HDMI In: Yes
    • HDMI Out: Yes
    • Number of Network (RJ-45) Ports: 4
    • Number of HDMI Inputs: 1
    • Number of HDMI Outputs: 3
    Media & Performance
    • Media Type Supported: Twisted Pair
    • Twisted Pair Cable Standard: Category 6a
    Physical Characteristics
    • Transmitter Height: 1.14"
    • Transmitter Width: 3.98"
    • Transmitter Depth: 5.35"
    • Receiver Height: 1.14"
    • Receiver Width: 3.98"
    • Receiver Depth: 5.35"
    • Form Factor: Rack-mountable
    • Transmitter Weight (Approximate): 15.87 oz
    • Receiver Weight (Approximate): 1.04 lb
    Miscellaneous
    • Package Contents:
    • 1 x VE814AT Transmitter
    • 1 x VE814AR Receiver
    • 1 x IR Transmitter Cable
    • 1 x IR Receiver Cable
    • 2 x RS-232 Terminal Blocks
    • 2 x Power Adapters
    • 1 x User Instructions
    • Environmentally Friendly: Yes
