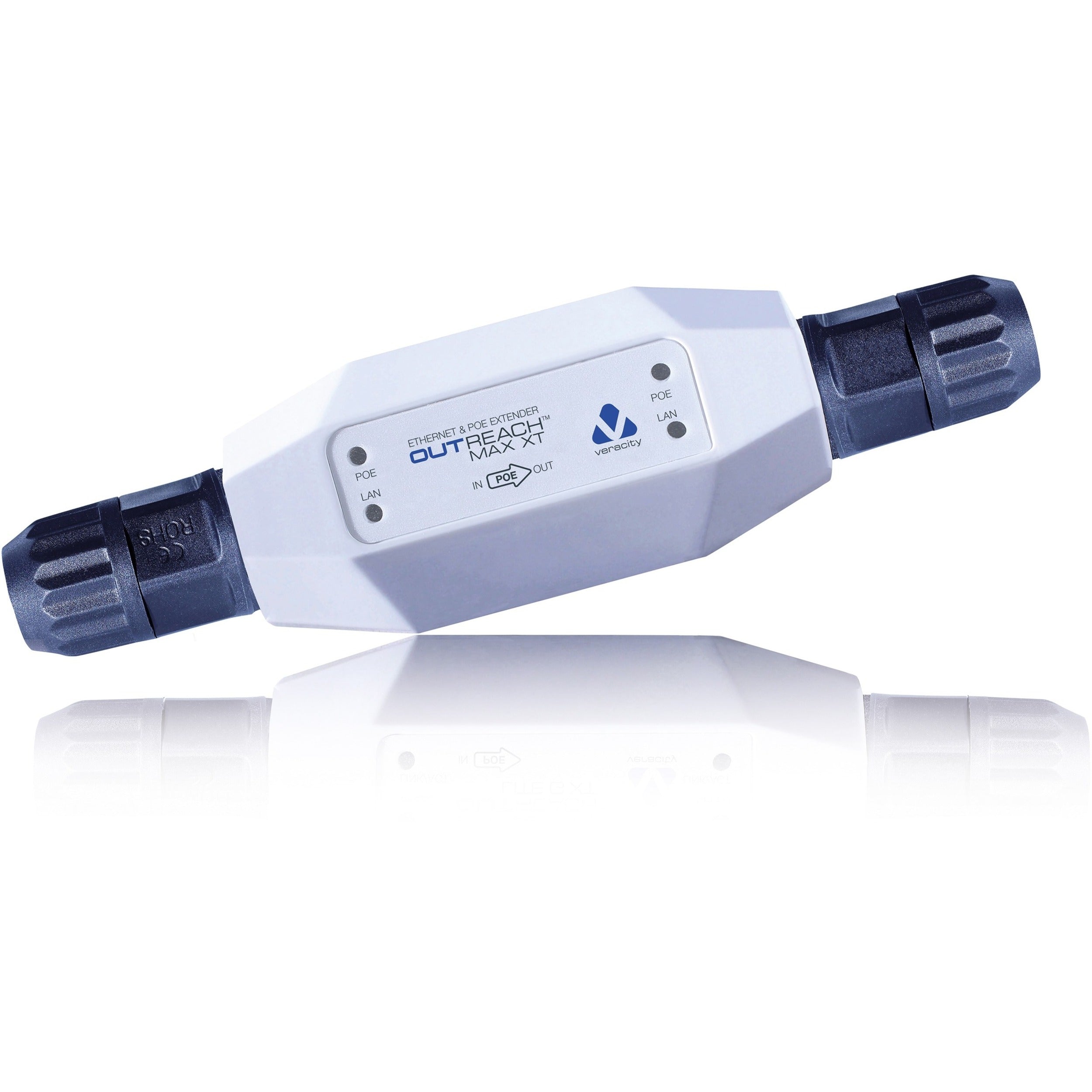

Veracity Outdoor Ethernet and POE Extender - VOR-ORM-XT

• Outdoor Ethernet and POE Extender
• IP66-Rated Connector Covers
• 2/4 Bolt Wall-Mounting Bracket

OUTREACH Max XT outdoor-rated network extender for POE devices up to 60 watts.

Environmental:
Ambient temperature -40C to 60C / -40F to 140F
Relative humidity up to 85% non-condensing
Ingress protection to IP66, enclosure polycarbonate

IP Video and Security:
OUTREACH Max XT Ethernet extenders are ideal for IP video applications, as they eliminate the one disadvantage that network cameras have compared to older analogue cameras: the limited cable length. As POE is becoming universal in digital video installations, Cat 5 cable extension is as simple as connecting an OUTREACH Max XT wherever it is needed.

OUTREACH Max XT can also be used to upgrade legacy twisted-pair video installations to IP with POE, where the Cat 5 infrastructure for a network is already in place, but run lengths exceed the 100 meter limit for Ethernet.

PTZ cameras, heater/blower units and door interlocks are all examples of products that are adopting the extended-power POE Plus standard that OUTREACH Max XT also supports.

Wireless networking:
Like IP cameras, wireless access points (WAPs) are ideally suited to POE as they must be positioned optimally in locations that are often inaccessible or remote. Using OUTREACH Max XT, a WAP - or Bluetooth access point or RFID reader - can be located just where it is needed for optimal coverage.

High-power radios and 802.11n APs can take advantage of the POE Plus power which OUTREACH Max XT supports.

Extending non-POE networks:
OUTREACH Max XT can be used in combination with OUTREACH Lite XT to extend networks without PoE from 300 meters to over 2 kilometers.
