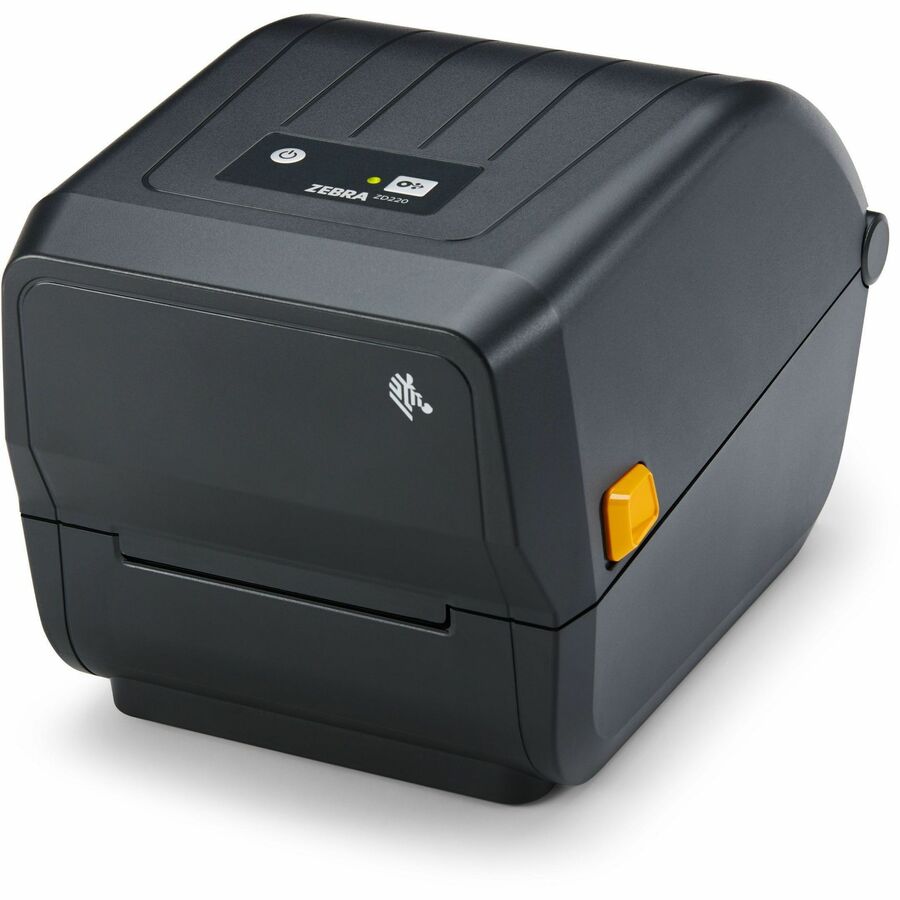

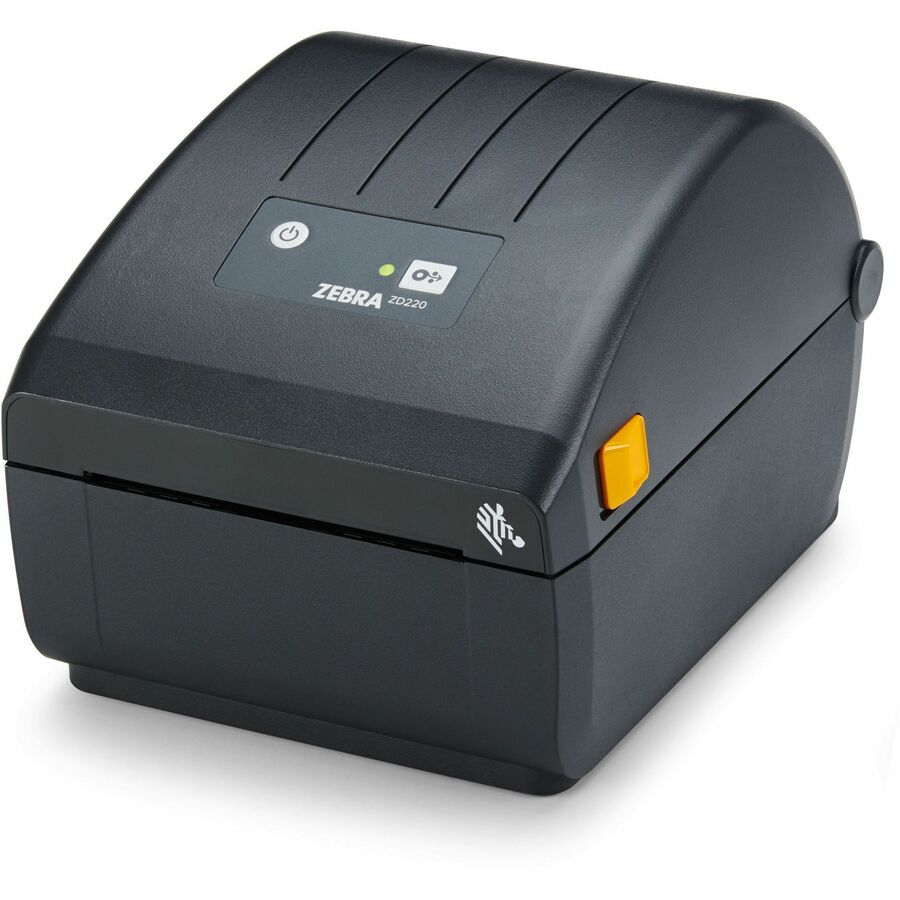

Zebra ZD230 Desktop, Retail, Healthcare, Transportation & Logistic, Manufacturing Direct Thermal Printer - Monochrome - Label Print - USB - ZD23042-D01H00EZ
Zebra ZD230 Desktop, Retail, Healthcare, Transportation & Logistic, Manufacturing Direct Thermal Printer - Monochrome - Label Print - USB - ZD23042-D01H00EZ

Note: Images and descriptions may not represent actual product accurately. Please confirm all information with Manufacturers.

Zebra Technologies Corporation

Zebra ZD230 Desktop, Retail, Healthcare, Transportation & Logistic, Manufacturing Direct Thermal Printer - Monochrome - Label Print - USB - ZD23042-D01H00EZ

4 in stock
SKU: 15023507
$607.26
For volume or products >$50,000, we can contact the Manufacturer to get even better pricing for you!
For Out of Stock items, please leave a Chat message and we'll get the lead time from the Manufacturer for you.
Click here for Additional pdf1

Zebra ZD230 Desktop, Retail, Healthcare, Transportation & Logistic, Manufacturing Direct Thermal Printer - Monochrome - Label Print - USB

  • UPC : N/A
    • General Information
    • Manufacturer: Zebra Technologies Corporation
    • Manufacturer Part Number: ZD23042D01H00EZ
    • Manufacturer Website Address: http://www.zebra.com
    • Brand Name: Zebra
    • Product Series: ZD200
    • Product Model: ZD230
    • Product Name: ZD230 4-Inch Value Desktop Printer
    • Product Type: Direct Thermal Printer
    Technical Information
    • Recommended Use: Label Print
    • Print Color Capability: Monochrome
    • Maximum Mono Print Speed: 5.98 in/s
    • Maximum Print Resolution (dpi): 203
    • Maximum Print Width: 4.09"
    • Barcode Symbology Supported:
      • Code 11
      • Code 39
      • Code 93
      • Code 128
      • ISBT-128
      • UPC-A
      • UPC-E
      • AZTEC
      • Micro PDF
      • QR Code
      • Maxi Code
      • Data Matrix
      • Code 49
      • LOGMARS
      • MSI
      • Planet Code
      • Plessey
      • Standard 2 of 5
      • Industrial 2 of 5
      • Interleaved 2 of 5
      • EAN 2 or 5 Digit Extension
      • UPC
      • EAN-13
      • EAN-8
    • Real Time Clock: No
    • Application/Usage:
      • Desktop
      • Retail
      • Healthcare
      • Transportation & Logistic
      • Manufacturing
    • Features: Dual Wall Frame
    Memory
    • Standard Memory: 128 MB
    Interfaces/Ports
    • USB: Yes
    Network & Communication
    • Ethernet: Yes
    Media Types & Handling
    • Media Type:
      • Label
      • Black Mark
      • Gap
      • Roll Fed
      • Fanfold
      • Die-cut Label
      • Continuous Label
      • Tag Stock
      • Continuous Receipt
      • Wristband
    • Media Sensor:
      • Moveable Sensor
      • Gap Sensor
    • Media Thickness: 7.48 mil
    • Maximum Roll Diameter: 5"
    • Maximum Label Width: 4.41"
    • Maximum Label Length: 39.02"
    Fonts & Emulation
    • Language Emulation:
      • EPL
      • ZPL
      • XML
      • EPL2
      • ZPL II
    Software
    • Operating System Supported:
      • Link-OS
    Power Description
    • Power Source: AC Supply
    Environmental Conditions
    • Operating Temperature: 40°F (4.4°C) - 105°F (40.6°C)
    • Operating Relative Humidity: 10% - 90%
    • Storage Temperature: 40°F (4.4°C) - 140°F (60°C)
    • Storage Relative Humidity: 5% - 95%
    Physical Characteristics
    • Height: 5.9"
    • Width: 6.9"
    • Depth: 8.6"
    • Weight (Approximate): 2.50 lb
    Miscellaneous
    • Platform Supported: PC
    • Certifications & Standards:
      • cTUVus
    • Energy Star: Yes
    Warranty
    • Limited Warranty: 2 Year
